Subtitle Detection

Module Description

Subtitle Detection

The Subtitle Detection module detects the appearance of burned-in subtitles, its position, language and the actual text content of the subtitle.

Module ID: subtitle_detection

Module Parameters

Name Type Default Description
text_similarity_threshold number 0.05 Threshold to compare texts of two frames, decreasing this value results in obtaining text duplicates.
text_region_buffer_threshold number 0.85 Threshold to extract the text outside the text intensive region.
dump_heatmap boolean false Dump a heatmap of all subtitles as an artifact.

Example

Send the following JSON as request body via POST to the /jobs/ endpoint:

{
  "sources": [
    "{url-to-your-video}"
  ],
  "modules": {
    "subtitle_detection": {
      "dump_heatmap": true
    }
  }
}

When requesting the job via GET on the /jobs/{JOB_ID}/ endpoint, the response looks like this:

{
  "id":"4b4334de-120c-445b-a241-0d4d935f0c16",
   "tag":"",
   "state":"completed",
   "sources":[
      "https://www.youtube.com/watch?v=CKt-CtirxE0"
   ],
   "modules":{
      "subtitle_detection":{
         "text_similarity_threshold":0.85,
         "text_region_buffer_threshold":0.05,
         "dump_heatmap":true,
         "state":"completed",
         "progress":1
      }
   },
   "errors":[],
   "progress":1.0,
   "duration":88.71,
   "time_created":"2023-08-04 10:10:27.037000",
   "time_started":"2023-08-04 10:13:56.758000",
   "time_completed":"2023-08-04 10:15:25.468000",
   "media_type":"video",
   "result":{
      "summary":[
         {
            "source":"https://www.youtube.com/watch?v=CKt-CtirxE0",
            "media_type":"video",
            "info":{
               "fps":29.97002997002997,
               "resolution":[
                  1920,
                  1080
               ],
               "total_frames":1031,
               "duration":35.55172413793103
            },
            "items":[
               {
                  "type":"language",
                  "label":"english",
                  "module":"subtitle_detection"
               }
            ]
         }
      ],
      "detailed_link":"https://api.deepva.com/api/v2/jobs/4b4334de-120c-445b-a241-0d4d935f0c16/detailed-results/",
      "summarized_link":"https://api.deepva.com/api/v2/jobs/4b4334de-120c-445b-a241-0d4d935f0c16/summarized-results/"
   }
}

The above response tells you the state of the job.

In order to get the subtitle segments with its meta-data you can request the /jobs/{JOB_ID}/detailed-results/ endpoint, the response looks like this:

{
   "total":8,
   "offset":0,
   "limit":100,
   "next":null,
   "prev":null,
   "data":[
      {
         "id":"2b321c87-0c77-4e45-aa39-10be7add9456",
         "media_type":"video",
         "frame_start":90,
         "frame_end":90,
         "source":"https://www.youtube.com/watch?v=CKt-CtirxE0",
         "module":"subtitle_detection",
         "meta":{
            "boxes":[
               [
                  [
                     492.0,
                     678.0
                  ],
                  [
                     805.0,
                     678.0
                  ],
                  [
                     805.0,
                     709.0
                  ],
                  [
                     492.0,
                     709.0
                  ]
               ]
            ],
            "texts":[
               "By A Brilliant Filmmaker"
            ],
            "scores":[
               0.9871765971183777
            ],
            "language":"english"
         },
         "thumbnail":null,
         "detections":[],
         "time_start":3.0,
         "time_end":3.0,
         "tc_start":"00:00:03:00",
         "tc_end":"00:00:03:00"
      }
   ]
}

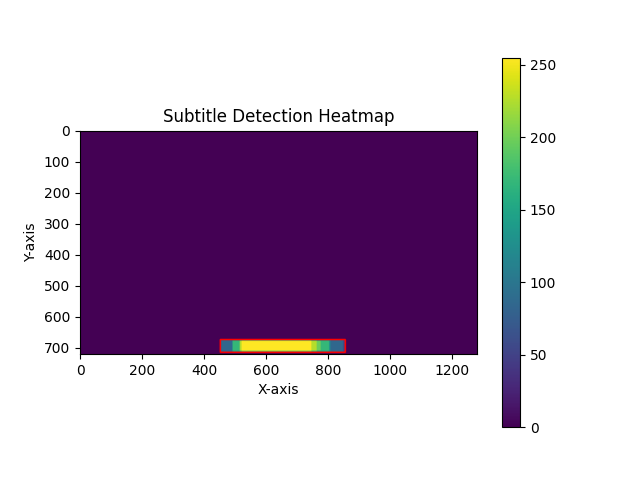

Since the parameter dump_heatmap was set to true, you can download the heatmap as an artifact. Request the /jobs/{JOB_ID}/artifacts/ endpoint, the response is an image which looks like this:

Subtitle Heatmap
